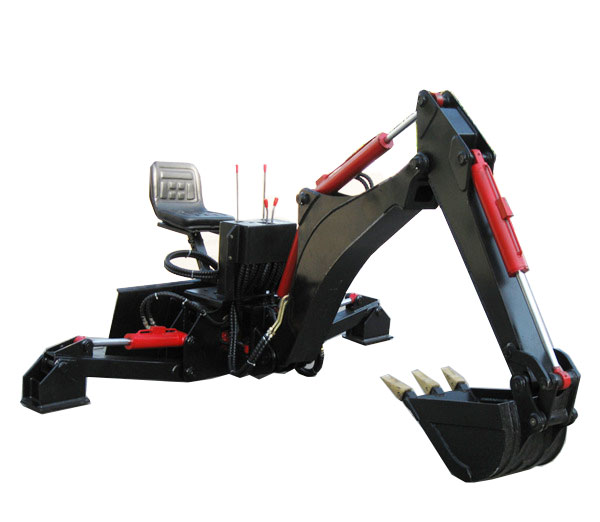

Mounted on a skid steer loader or the back of another machine to perform pipeline trenching jobs in the fields of electricity, telecommunications etc and landscaping etc
| Model | 30170 Straight Arm Type | 0301A70 Crank Arm Type |
|---|---|---|
| Maximum digging depth A (mm) | 2430 | 2375 |
| Maximum working height B (mm) | 2864 | 2547 |
| Maximum horizontal arm extension C (mm) | 3269 | 3019 |
| Maximum discharge height D (mm) | 1495 | 1467 |
| Ground Clearance E（mm） | 215 | 215 |
| Width(mm) | 1176 | 1176 |
| Swing Angle towards left or right(°) | 140 | 140 |
| Bucket Rotation Angle(°) | 186 | 150° |
| Maximum discharge height D (mm) | 1495 | 1467 |
| Flow（l/min） | 20-60 | 20-60 |
| Working Pressure (MPa) | 16-21 | 16-21 |
