Hydraulic concrete pulverizer

Application:

Concrete crushing and pulverizing during demolition and recyling job.

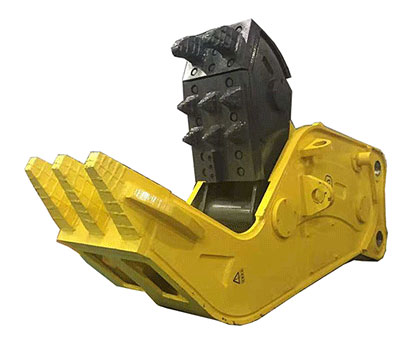

concrete pulverizer image

Charactaristics

1. Made of high strength and light-weight steel
2. teeth made of high anti-abrasion steel
3. Big diameter hydraulic cylinder
4. Big openning

Our product can well fit these excavator brand:KOMATSU,HITACHI, CATERPILLAR,SUMITOMO, HYUNDAI, KOBELCO, KATO, SANY,DAEWOO,VOLVO etc.

Specification of concrete pulverizer

Model	Total Weight(KG)	Total Length(mm)	Max. Openning width(mm)	Breaking Force(KN)	Hydraulic Pressure(Mpa)	Excavator class(ton)
HCP120	660	1400	450	60	32	8-15
HCP200	1260	1800	750	79	34	18-15
HCP300	1850	1950	775	100	34	25-34
HCP350	2850	2550	1000	115	34	35-45

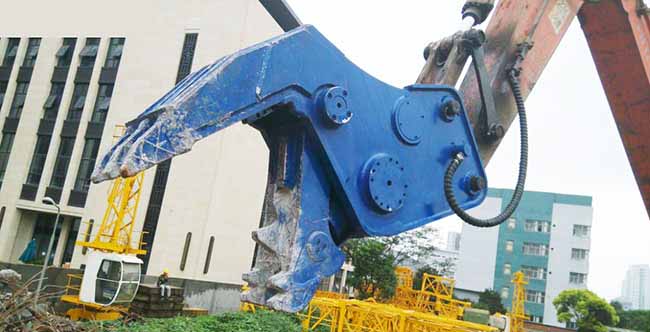

Case of hydraulic concrete pulverizer
