Rock Grapple

Application:

For waste metals disposal, stones, woods loading, unloading and moving,etc material handling work.

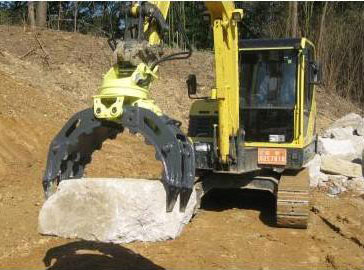

Image of Rock Grapple

excavator rock grapple

Characteristic

  1. Hydraulic Rock Grapple360 degree power rotating
  2. serrated edge to increase gripping force and anti-skidding,
  3. Over-sized and hardened pivot pin
  4. Hydraulic cylinder with steel cover

Specification of Rock Grapple

ModelExcavator Class(ton)Weight(KG)Max. Openning(mm)Max. Closed Area(M2)Max. Raise height(mm)Min. Closed Gap(mm)
ZX 706-934012000.231290190
ZS 12010-1568013000.431640290
ZS 20016-24110016000.871890360
ZS 30025-30140023001.22130450
ZS 40031-36195028001.832370520

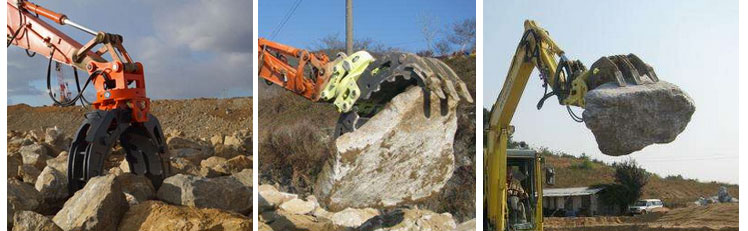

Case
