Tilt Bucket

Application:

Slope-surface trimming, waterways dredging, water ditching, etc.

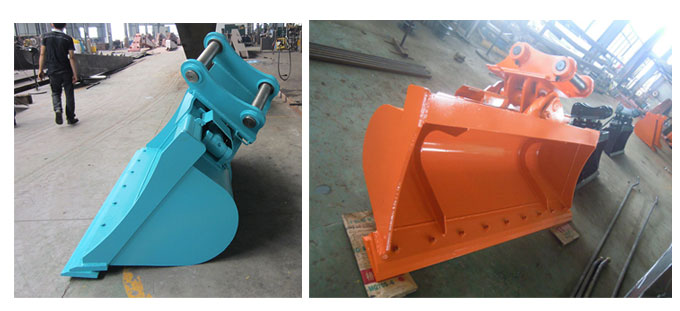

Tilt Bucket Image

Characteristics

1. Tilt left and right 45 degrees
2. Double cutting edge fixed by bolt, lower one is removable
3. tilt cylinder with protector

specification of tilt bucket

Model	Internal width(mm)	Self weight(kg)	Excavator tonnage(ton)
TB50	1016(40'')	340	3~5
TB100	1270(50'')	580	6~10
TB120	1626(64'')	740	11~16
TB200	1778(70'')	920	17~20
TB250	1830(72'')	1120	21~24
TB300	2032(8'')	1350	25~30
TB350	2135(84'')	1580	31~35

Pictures of tilt bucket we made for customer

2m wide tilt bucket, double cutting edge, for 12-15ton excavator

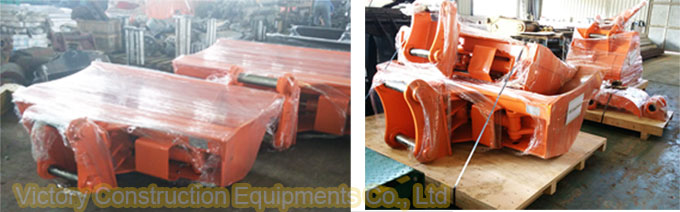

Tilt Bucket for EX200 and EX120 excavator

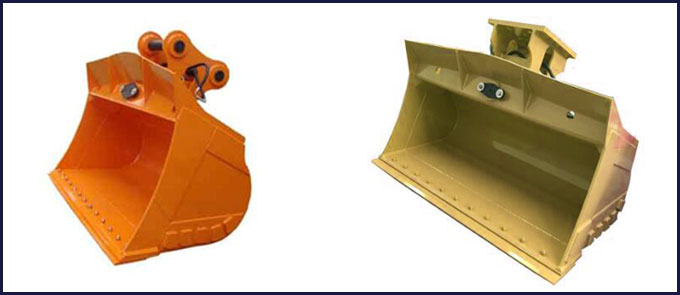

Tilt bucket with spill guard and resistant wear block on side blade

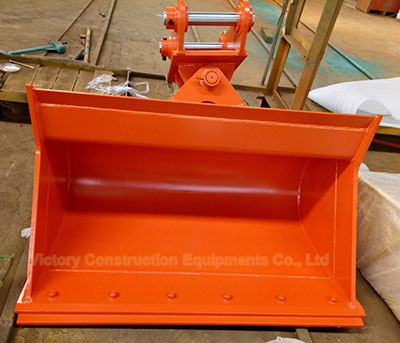

ZX75 Tilt Bucket, 0.45cbm capacity
