Excavator Drum Cutter

Application:

Cutting of trenches and shafts in hard ground and tunnel profiles, trimming of concrete or asphalt, and any kind of rock excavation.

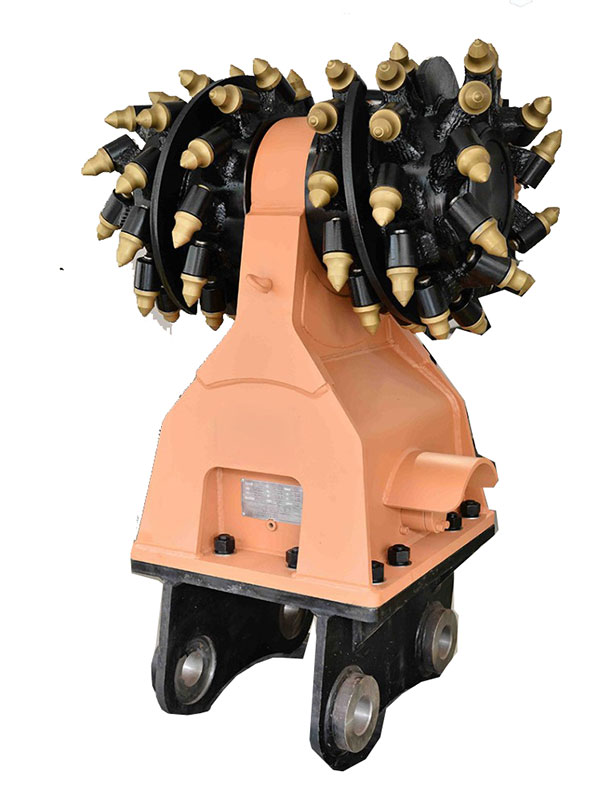

Image of Drum cutter

Characteristics

1. Low noise and low vibration, protecting the environment.
2. construction safety, high efficiency, small particle milling dug directly when the back fill.
3. Flexible: according to the operating environment, different milling cutters, rock saw discs, etc. can be installed; replacement is simple and convenient.
4. Simple installation and economical maintenance; an efficient alternative to buckets, hammers, and other tools.

parameter of drum cutter

Model	Excavator Class(ton)	Weight(KG)	Flow(L/Min)	Speed(R/Min)	Working Pressure(Bar)	Pick force(KN)	Rated Power(KW)	Width(M)	Diameter(M)	Length(M)
VDC 5RW	2～7	310	30～65	75～163	220～320	8～11	25	0.65	0.39	0.48
VDC 10RW	7～16	410	50～110	67～147	220～320	13～19	35	0.75	0.44	0.58
VDC 15RW	12～18	780	75～130	59～103	220～320	19～27	50	0.84	0.48	0.7
VDC 20RW	18～30	1350	150～320	53～114	220～320	31～45	90	1.08	0.65	0.84
VDC 30RW	22～38	1650	180～400	43～95	220～350	44～70	120	1.2	0.7	0.84
VDC 40RW	35～65	2150	225～510	38～85	220～350	55～84	165	1.35	0.8	1

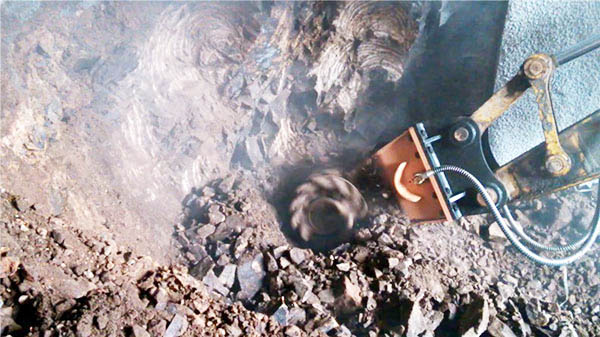

Case
