Home > Product > Heavy Duty Bucket

Excavator Heavy Duty Bucket

Application:

For digging clay, or loading the sand,mud and gravel.

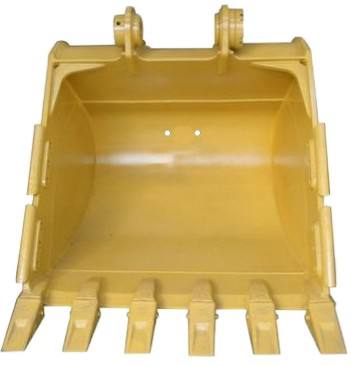

Excavator heavy duty bucket image

excavator heavy duty bucket

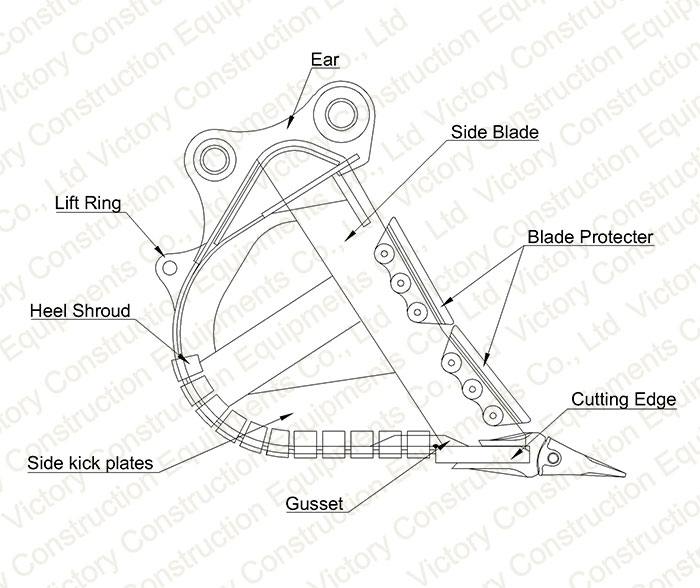

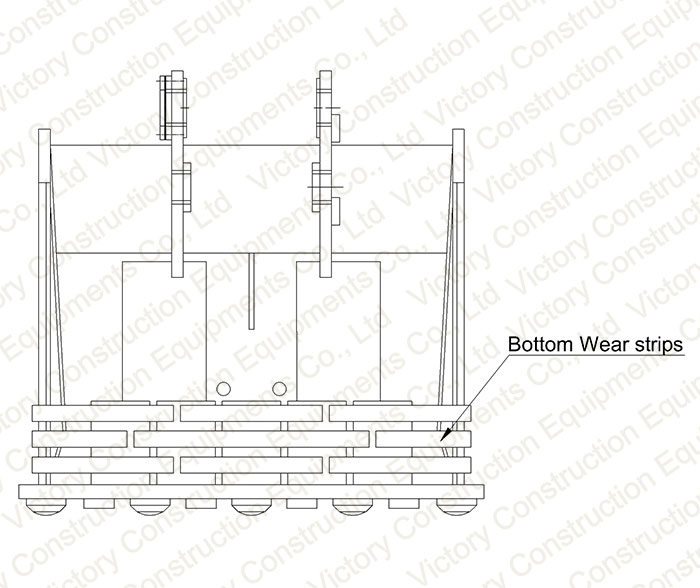

bucket configuration

bucket configuration

    1, GP/Standard bucket: all plates are Q345B, replaceable side cutter instead of blade protecter,

    2, Heavy Duty Bucket: Reinforced design for cutting edge, side blade, and bottom horizontal wear strips, with gussets, blade protecter, all plates are Q345B material

    3, Extreme Heavy Duty Bucket: Hardox400 material for cutting edge, weld-on heel shroud. other plates are Q345B

    4, Rock Bucket: Hardox 400 material for wear plates : cutting edge, side blade, side kick plates, bottom horizontal wear strips. weld-on heel shroudother plates are Q345B

    Q345B steel is a kind of construction equipments material which yield strength is 345Mpa, for detailed mechanical property, pls check Property of chinese low alloy steel material Q345B

    Hardox400 is a sweden made steel notable for its high wear resistance and toughness, yield strength could be 1000Mpa. for more information please check Property of Hardox400 and Hardox500

Heavy Duty Bucket We Made for Customer

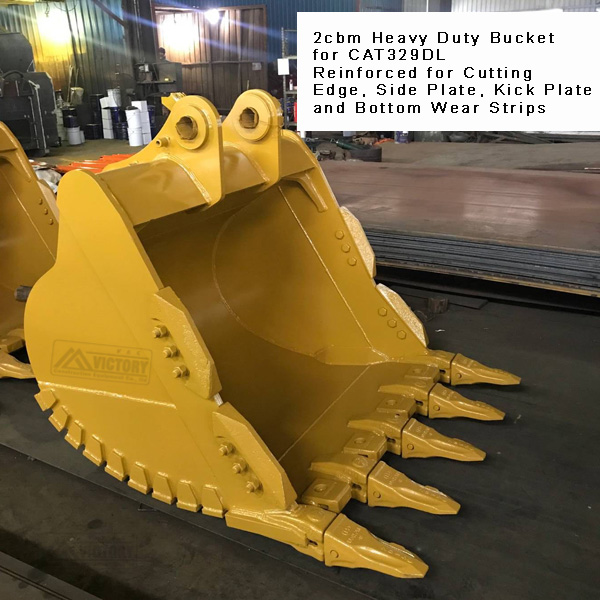

Heavy Duty Bucket, 2M3, CAT329DL excavator
