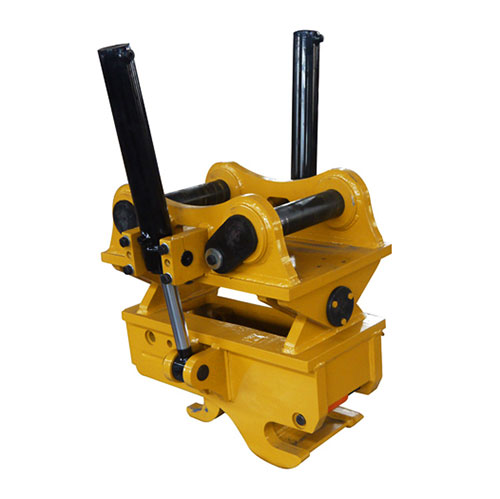

A Quick coupler with function of tilting any attachment left/right 45 degrees
| Model | Max. bucket capacity(M3) | Max. bucket width(m) | Weight(KG) | Tilt Angle | Tilt Speed | Working Pressure | Excavator Class(ton) |
|---|---|---|---|---|---|---|---|
| TQC-100 | 0.8 | 1.6 | 315 | 2x400 | 7 secs at 601/min | 25Mpa | 10-16 |
| TQC-200 | 1.1 | 1.8 | 460 | 2x400 | 7 secs at 651/min | 25Mpa | 15-24 |
| TQC-300 | 1.6 | 2 | 730 | 2x400 | 8 secs at 701/min | 25Mpa | 23-30 |
